Dispatcher View

Context

System controls flow of execution and access to presentation processing, which is responsible for generating dynamic content.

Note

The Dispatcher View pattern, like the Service to Worker pattern, describes a common combination of other patterns from the catalog. Both of these macro patterns describe the combination of a controller and dispatcher with views and helpers. While describing this common structure, they emphasize related but different usage patterns.

Problem

The problem is a combination of the problems solved by the Front Controller and View Helper patterns in the presentation tier. There is no centralized component for managing access control, content retrieval or view management, and there is duplicate control code scattered throughout various views. Additionally, business logic and presentation formatting logic are intermingled within these views, making the system less flexible, less reusable, and generally less resilient to change.

Intermingling business logic with view processing also reduces modularity and provides a poor separation of roles among Web production and software development teams.

Forces

  • Authentication and authorization checks are completed per request.

  • Scriptlet code within views should be minimized.
  • Business logic should be encapsulated in components other than the view.
  • Control flow is relatively simple and is typically based on values encapsulated with the request.
  • View management logic is limited in complexity.

Solution

Combine a controller and dispatcher with views and helpers (see "Front Controller" on page 172 and "View Helper" on page 186) to handle client requests and prepare a dynamic presentation as the response. Controllers do not delegate content retrieval to helpers, because these activities are deferred to the time of view processing. A dispatcher is responsible for view management and navigation and can be encapsulated either within a controller, a view, or a separate component.

Dispatcher View describes the combination of the Front Controller and View Helper patterns with a dispatcher component. While this pattern and the Service to Worker pattern describe a similar structure, the two patterns suggest a different division of labor among the components. The controller and the dispatcher typically have limited responsibilities, as compared to the Service to Worker pattern, since the upfront processing and view management logic are basic. Furthermore, if centralized control of the underlying resources is considered unnecessary, then the controller is removed and the dispatcher may be moved into a view.

Since the Service to Worker and Dispatcher View patterns represent a common combination of other patterns from the catalog, each warrants its own name to promote efficient communication among developers. Unlike the Service to Worker pattern, the Dispatcher View pattern suggests deferring content retrieval to the time of view processing.

In the Dispatcher View pattern, the dispatcher typically plays a limited to moderate role in view management. In the Service to Worker pattern, the dispatcher typically plays a moderate to large role in view management.

A limited role for the dispatcher occurs when no outside resources are utilized in order to choose the view. The information encapsulated in the request is sufficient to determine the view to dispatch the request. For example:

http://some.server.com/servlet/Controller?next=login.jsp

The sole responsibility of the dispatcher component in this case is to dispatch to the view login.jsp.

An example of the dispatcher playing a moderate role is the case where the client submits a request directly to a controller with a query parameter that describes an action to be completed:

http://some.server.com/servlet/Controller?action=login

The responsibility of the dispatcher component here is to translate the logical name login into the resource name of an appropriate view, such as login.jsp, and dispatch to that view. To accomplish this translation, the dispatcher may access resources such as an XML configuration file that specifies the appropriate view to display.

On the other hand, in the Service to Worker pattern, the dispatcher might be more sophisticated. The dispatcher may invoke a business service to determine the appropriate view to display.

The shared structure of these two patterns, as mentioned above, consists of a controller working with a dispatcher, views, and helpers.

Structure

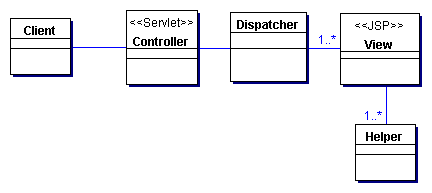

Figure 7.24 shows the class diagram that represents the Dispatcher View pattern.

Figure 7.24
Figure 7.24 Dispatcher View class diagram

Participants and Responsibilities

Figure 7.25 shows the Dispatcher View sequence pattern.

Figure 7.25
Figure 7.25 Dispatcher View sequence diagram

While the controller responsibilities are limited to system services, such as authentication and authorization, it is often still beneficial to centralize these aspects of the system. Notice also that, unlike in Service to Worker, the dispatcher does not make invocations on a business service in order to complete its view management processing.

The dispatcher functionality may be encapsulated in its own component. At the same time, when the responsibilities of the dispatcher are limited, as described by this pattern, the dispatcher functionality is often folded into another component, such as the controller or the view (see "Dispatcher in Controller Strategy" on page 183 and "Dispatcher in View Strategy" on page 32).

In fact, the dispatcher functionality may even be completed by the container, in the case where there is no extra application-level logic necessary. An example is a view called main.jsp that is given the alias name first. The container will process the following request, translate the alias name to the physical resource name, and dispatch directly to that resource:

http://some.server.com/first --> /mywebapp/main.jsp

In this case, we are left with the View Helper pattern, with the request being handled directly by the view. Since the view is the initial contact point for handling a request, custom tag helpers are typically used in these cases to perform business processing or to delegate this processing to other components. See the listing in Example 7.35 in the "Sample Code" section for an implementation sample.

Thus, the Dispatcher View pattern describes a continuum of related scenarios, moving from a scenario that is very structurally similar to Service to Worker to one that is similar to View Helper.

Controller

The controller is typically the initial contact point for handling a request. The controller manages authentication and authorization, and delegates to a dispatcher to do view management.

Dispatcher

A dispatcher is responsible for view management and navigation, managing the choice of the next view to present to the user and providing the mechanism for vectoring control to this resource.

A dispatcher can be encapsulated within a controller (see "Front Controller" on page 172) or can be a separate component working in coordination. The dispatcher can provide static dispatching to the view or may provide a more sophisticated dynamic dispatching mechanism.

View

A view represents and displays information to the client. The information that is used in a display is retrieved from a model. Helpers support views by encapsulating and adapting a model for use in a display.

Helper

A helper is responsible for helping a view or controller complete its processing. Thus, helpers have numerous responsibilities, including gathering data required by the view and storing this intermediate model, in which case the helper is sometimes referred to as a value bean. Additionally, helpers may adapt this data model for use by the view. Helpers can service requests for data from the view by simply providing access to the raw data or by formatting the data as Web content.

A view may work with any number of helpers, which are typically implemented as JavaBeans (JSP 1.0+) and custom tags (JSP 1.1+). Additionally, a helper may represent a Command object or a Delegate (see "Business Delegate" on page 248).

ValueBean

A value bean is another name for a helper that is responsible for holding intermediate model state for use by a view. A typical case, as shown in the sequence diagram in Figure 7.12, has the business service returning a value bean in response to a request. In this case, ValueBean fulfills the role of a Transfer Object (see "Transfer Object" on page 261).

BusinessService

The business service is a role that is fulfilled by the service the client is seeking to access. Typically, the business service is accessed via a business delegate. The business delegate's role is to provide control and protection for the business service (see "Business Delegate" on page 248).

Strategies

Servlet Front Strategy

See "Servlet Front Strategy" on page 175.

JSP Front Strategy

See "JSP Front Strategy" on page 178.

JSP View Strategy

See "JSP View Strategy" on page 190.

Servlet View Strategy

See "Servlet View Strategy" on page 191.

JavaBean Helper Strategy

See "JavaBean Helper Strategy" on page 194.

Custom Tag Helper Strategy

See "Custom Tag Helper Strategy" on page 194.

Dispatcher in Controller Strategy

See "Dispatcher in Controller Strategy" on page 183.

As stated, the Service to Worker and Dispatcher View patterns suggest a continuum, where behavior is encapsulated closer to the front in Service to Worker or moved farther back in Dispatcher View.

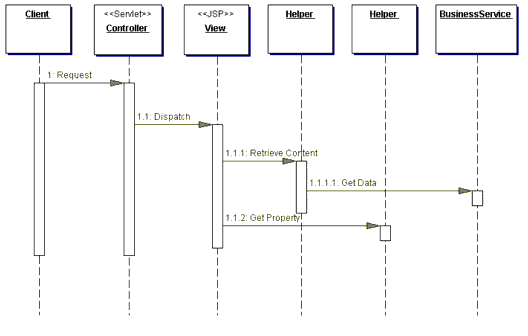

Figure 7.26 shows the interactions for this strategy.

Figure 7.26
Figure 7.26 Dispatcher in Controller Strategy

The controller does not create an explicit dispatcher object. Instead, the controller takes care of dispatching to the view. Alternatively, one could implement a dispatcher to which the controller can delegate the dispatching function.

Dispatcher in View Strategy

If the controller is removed due to its limited role, the dispatcher may be moved into a view. This design can be useful in cases where there is typically one view that maps to a specific request, but where a secondary view may be used on an infrequent basis. For example, based on some information in the request or results of some processing in a view, a custom tag helper in the view might vector control to a secondary view. A typical case is when a client request is submitted to a specific view, and will be serviced by that view in almost every case. Consider the case where the user has not been authenticated, but requests access to one of the few protected JSPs on a site. Since the site has only a few protected pages, and limited dynamic content, authentication can be performed within those JSPs, instead of using a site-wide centralized controller. Those pages that need authentication include a custom tag helper at the top of the page. This helper performs the authentication check and either displays the page for the user or forwards the user to an authentication page.

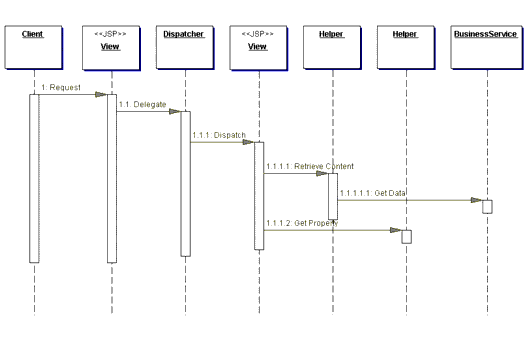

Figure 7.27 represents this scenario.

Figure 7.27
Figure 7.27 Dispatcher in View Strategy

Transformer Helper Strategy

See "Transformer Helper Strategy" on page 200.

Consequences

  • Centralizes Control and Improves Reuse and Maintainability
    Control processing is handled in a central place for multiple requests. It is easier to manage these activities and perform dispatching from a centralized point, since a central access point means code is reused across multiple requests, reducing duplication and easing maintenance.

  • Improves Application Partitioning
    Use of helpers results in a cleaner separation of the view from an application's business processing. The helpers, in the form of JavaBeans (JSP 1.0+) and Custom tags (JSP 1.1+), provide a place for business logic to be factored out of the JSP, where scriptlet code quickly becomes cumbersome and unwieldy in large projects.

  • Improves Role Separation
    Separating the formatting logic from the application business logic also reduces dependencies that individuals fulfilling different roles might have on the same resources. For example, a software developer would own code that is embedded within HTML markup, while a Web production team member would need to modify page layout and design components that are intermingled with business logic. Because neither individual fulfilling these roles may be familiar with the implementation specifics of the other individual's work, there is the likelihood of inadvertent modifications introducing bugs into the system.

Sample Code

The following sample code shows an implementation of the Dispatcher View pattern, using a controller servlet and a view with JavaBean and custom tag helpers. The implementation includes the Servlet Front Strategy, Dispatcher in Controller Strategy, JSP View Strategy, and custom tag and JavaBean helper strategies. A very basic composite view is used as well. A screen shot of the resulting display is shown in Figure 7.28.

Example 7.34 shows the controller servlet, which simply completes an authentication check and passes control to the appropriate view. Notice that the controller does not directly delegate to any helper components in order to make invocations to the business tier via a Delegate. These responsibilities are deferred to the view, which is called accountdetails.jsp and can be seen in Example 7.35. The sample code uses a LogManager to log messages. These messages are displayed at the bottom of the output page, for the purposes of this example, and can be seen in the screen shots in Figure 7.23 and Figure 7.28.

Example 7.34 Dispatcher View Controller Servlet

public class Controller extends HttpServlet {

  /** Processes requests for both HTTP
    * <code>GET</code> and <code>POST</code> methods.
    * @param request servlet request
    * @param response servlet response
    */
  protected void processRequest(HttpServletRequest
    request, HttpServletResponse response)
    throws ServletException, java.io.IOException {
    String nextview;
    try {
      LogManager.recordStrategy(request,
        "Dispatcher View",
        " Servlet Front Strategy; " +
    "JSP View Strategy; Custom tag helper Strategy");
      LogManager.logMessage(request, getSignature(),
        "Process incoming request. ");

      // Use a helper object to gather parameter
      // specific information.
      RequestHelper helper = new
          RequestHelper(request, response);
      LogManager.logMessage(request,
        getSignature(), " Authenticate user");

      Authenticator auth = new BasicAuthenticator();
      auth.authenticate(helper);

      //This is an oversimplification for the sake of
      // simplicity. Typically, there will be a
      // mapping from logical name to resource name at
      // this point
      LogManager.logMessage(request, getSignature(),
        "Getting nextview");
      nextview = request.getParameter("nextview");

      LogManager.logMessage(request, getSignature(),
        "Dispatching to view: " + nextview);
    }
    catch (Exception e) {
      LogManager.logMessage(
        "Handle exception appropriately",
        e.getMessage() );
      /** ApplicationResources provides a simple API
        * for retrieving constants and other
        * preconfigured values**/
      nextview = ApplicationResources.getInstance().
          getErrorPage(e);
    }
    dispatch(request, response, nextview);
  }

  /** Handles the HTTP <code>GET</code> method.
    * @param request servlet request
    * @param response servlet response
    */
  protected void doGet(HttpServletRequest request,
    HttpServletResponse response)
  throws ServletException, java.io.IOException {
    processRequest(request, response);
 }

  /** Handles the HTTP <code>POST</code> method.
    * @param request servlet request
    * @param response servlet response
    */
  protected void doPost(HttpServletRequest request,
    HttpServletResponse response)
  throws ServletException, java.io.IOException {
    processRequest(request, response);
  }

  /** Returns a short description of the servlet. */
  public String getServletInfo(){
      return getSignature();
  }

  public void init(ServletConfig config) throws
    ServletException {
    super.init(config);
  }

  public void destroy() { }

  /**
    * dispatcher method
    */
  protected void dispatch(HttpServletRequest request,
    HttpServletResponse response, String page)
    throws javax.servlet.ServletException,
    java.io.IOException {
        RequestDispatcher dispatcher =
          getServletContext().
            getRequestDispatcher(page);
        dispatcher.forward(request, response);
  }

  private String getSignature()  {
    return "DispatcherView-Controller";
  }
}

Notice that the view uses custom tag helpers to manage content retrieval, since this activity was not completed in the controller. When custom tags are used in this manner, they typically become thin facades for standalone components to which they delegate to complete this processing. This way, the general processing logic is loosely coupled to the tag implementation. If custom tags are not used with Dispatcher View, then too much scriptlet code typically ends up in the JSP, a situation to be avoided.

Example 7.35 View - accountdetails.jsp

<%@ taglib uri="/web-INF/corepatternstaglibrary.tld"
  prefix="corepatterns" %>

<html>
<head><title>AccountDetails</title></head>
<body>

<corepatterns:AccountQuery
  queryParams="custid,acctkey" scope="request" />

<h2><center> Account Detail for <corepatterns:Account
  attribute="owner" /></h2> <br><br>

<tr>
  <td>Account Number :</td>
  <td><corepatterns:Account attribute="number" /></td>
</tr>

<tr>
  <td>Account Type:</td>
  <td><corepatterns:Account attribute="type" /></td>
</tr>

<tr>
  <td>Account Balance:</td>
  <td><corepatterns:Account attribute="balance" /></td>
</tr>

<tr>
 <td>OverDraft Limit:</td>
 <td><corepatterns:Account attribute="overdraftLimit" /></td>
</tr>
<table border=3>
</table>
</corepatterns:AccountQuery>

<br>
<br>

</center>
<%@ include file="/jsp/trace.jsp" %>
</body>
</html>

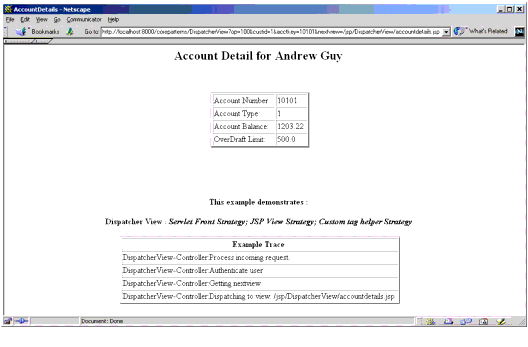

Figure 7.28
Figure 7.28 Dispatcher View sample screen shot

Related Patterns

  • Front Controller
    The Service to Worker pattern is the result of combining the View Helper pattern with a dispatcher in coordination with the Front Controller pattern.

  • View Helper
    The Service to Worker pattern is the result of combining the View Helper pattern with a dispatcher in coordination with the Front Controller pattern.
  • Service to Worker
    The Service to Worker pattern is another name for the combination of the Front Controller pattern with a dispatcher and the View Helper pattern. The Service to Worker and Dispatcher View patterns are identical with respect to the components involved, but differ in the division of labor among those components. The Dispatcher View pattern suggests deferring content retrieval to the time of view processing. Also, the dispatcher plays a more limited role in view management, as the choice of view is typically already included in the request.
